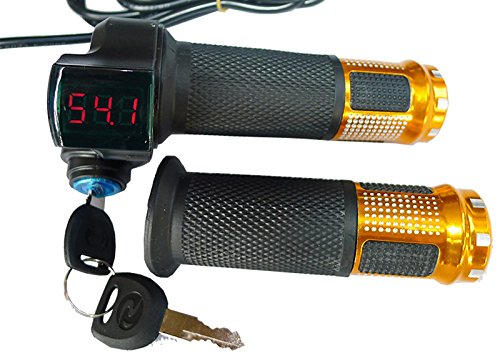

24V/36V/48V Electric Bike Throttle Grip Electric Scooter Battery Voltage LED Indicator Power Key Locker Accelerator
This is one pair of throttle for electric bike.
Brand name : L-faster
Model : S001
Effiency : ≥98%
Working voltage : Throttle DC 1-4.2 V
Working current : DC 350 mAh
Package included : 1xPair (Throttle+grips+keyswitch)
Weight: N.W. :510G
Features
Cable length: 200CM
Key switch (2 keys)
Wiring :
red cable : throttle +5V
black cable :throttle ground
Green cable :throttle signal
Yellow cable : + positive of key switch
blue cable:- negative of key swithc
This throttle suit for 12V,24V,36V,48V,60V,72V battery
It can show your battery present voltage
Loading...
![Aduro Bike Water Bottle Holder Aluminum Cage, [2X Pack] Bicycle Water Bottle Mount Lightweight f ...](https://www.bikingbee.com/wp-content/uploads/2018/09/41Celm14i7L-250x296.jpg)
Good product, but be careful. First impression. Looks great. Has a bit of a cheap feel but overall it’s good. I hooked it up without the voltage and it was great. Very smooth power levels. One thing though. I then hooked up the voltage display wires onto the proper connection on the controller and in 3 seconds, it was smoking about to catch fire. Wire coating melted. I tested the resistance on the display circuit and turns out, the wires are shorted. Display did work however for that short period of time. Idk why but it…
