Voilamart 26″ Rear Wheel Electric Bicycle Conversion Kit, 48V 1000W E-bike Motor Kit with LCD Display, Intelligent Controller and PAS System, 750W Power Limited for Road Bike
The Electric Bicycle Kit Key feature:
* 48V 1000W and 750W super power brushless gearless hub motor
* Nylon tire & alloy rim & stainless steel spoke
* Rare-earth metal magnet are used in the motor to efficiently produce large power
* Aluminum alloy powerful controller guarantee big current supply
* Adjustable 5 level intelligent pedal assist with twist throttle
* LCD display shows battery level and pedal assistance settings
* Brake Levers cut off the power supply to the motor safely
* Crank speed sensor for pedal assist
Upgraded Intelligent Motor Controller:
* Allow you to swap two power modes between the full 1000W power or 750W power by a single blue switch wire is embedded in controller. (Only for Twist Throttle)* Still remain the full 1000W power with no speed control.(Only for Pedal Assist System,”PAS”)
1. Battery and charger are not included in package.
2. The system requires a 48 Volt electrokinetic cell battery with a nominal capacity not less than 11.6Ah.
3. Press the “M” button on the LCD Meter to start the system.
Caution: For your Safety, Please turn off the battery before connecting the Controller！
Wheel type: Rear
Motor: Brushless gearless
Rim: Alloy double wall
Torque: 45 N.M
Spokes: Steel, 12G x 2.6mm
Wheel Size: 26 inch
Wheel Axle: Length 210mm x Dia10mm
Max load capacity: 330-440lb / 150-200kg
Net weight: 22lb / 10kg
Mode 1 Power: 750W / 48V; Max speed: 24mph / 38 km/h
Mode 2 Power: 1000W / 48V; Max speed: 28mph / 45 km/h

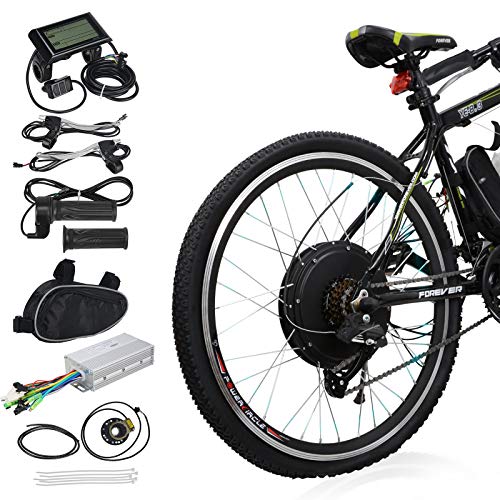

1x Brushless Gearless Motor Rear Wheel
1x Intelligent Motor Controller
1x Pedal Assist Crank Sensor
1x Cable Ties & Plastic Coil
1x Pair of Handle Bars (included Twist Throttle)
1x Controller Bag
1x Pair of Brake Handles
1x LCD Meter
- 48V 1000W Powerful brushless gearless motor with 28mph (45km/h) speed; Restricted to 750W and 24mph (38km/h) speed by default as a road-legal pedal bike conversion kit.
- Pedal Assistance System (PAS): enjoy cycling while driving electric bike with 330-440LB / 150-200KG Max Load Capacity.
- LCD display shows battery level and pedal assistance settings; Brake Levers cut off the power supply to the motor safely; Twist throttle has battery level display
- Comes with all the components you need to a full conversion, including Rear Wheel(of 7 speed sprocket), Motor Controller, Controller Bag, Pedal Assist Crank Sensor, Cable Ties & Plastic Coil, Twist Throttle, One Pair of Handle Bars, One Pair of Brake Handles, Manual, LCD Meter. (Note: Battery not included)
- CE approved; 48 Volt electrokinetic cell battery with a nominal capacity not less than 11.6Ah is required.
